Morgan Rushworth HSVS Guillotine

Multi-function variable rake guillotine

he HSVS range of variable rake CNC guillotines are heavy duty, strong machines designed for a long working life. The CNC controller automatically calculates and adjusts the blade gap, the back gauge position, and cutting angle simultaneously once the data is entered.

It also features an adjustable stroke length to reduce stroke time when cutting narrower widths. Therefore the strokes per minute cutting cycle is significantly increased.

The cutting angle automatically adjusts according to material thickness minimising the twisting of sheet during the cutting cycle.

ENQUIRE NOWOR Call Us: 0800 980 7709

ENQUIRE NOW

OR Call Us: 0800 980 7709

HSVS Rear View

HSVS-Guillotine

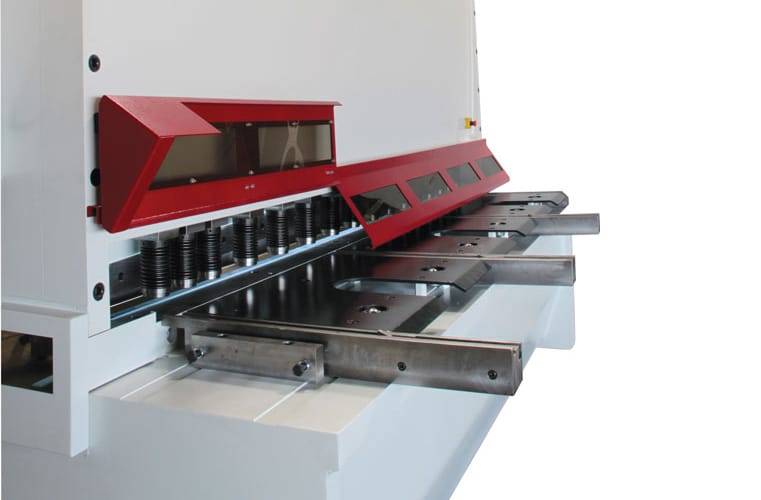

Optional-Swing-Up-Front-Guard

Support-Arms

Features

Technical Specs

Options

Downloads

Product Video

Knowledge Hub

Features

Technical Specs

Specifications	Unit	HSVS CNC 3100/6	HSVS CNC 3100/10	HSVS CNC 3100/13	HSVS CNC 3100/16	HSVS CNC 3100/20	HSVS CNC 3100/25	HSVS CNC 4100/6	HSVS CNC 4100/10	HSVS CNC 4100/13	HSVS CNC 4100/16	HSVS CNC 4100/20	HSVS CNC 6100/6	HSVS CNC 6100/10	HSVS CNC 6100/13	HSVS CNC 6100/16	HSVS CNC 6100/20
SKU		M1080	M1081	M1082	M1083	M1084	M1085	M1086	M1087	M1088	M1089	M1090	M1091	M1092	M1093	M1094	M1095
Cutting Length	mm	3070	3070	3070	3070	3070	3070	4070	4070	4070	4070	4070	6070	6070	6070	6070	6070
Cutting Capacity (45 kg/mm2)	mm	6	10	13	16	20	25	6	10	13	16	20	6	10	13	16	20
Cutting Capacity (70 kg/mm2)	mm	4	6	8	10	13	16	4	6	8	10	13	4	6	8	10	13
Cutting Angle	mm/sec	0.5-1.5	0.5-2.0	0.5-2.5	0.5-3.0	0.5-3.0	0.5-3.5	0.5-1.5	0.5-2.0	0.5-2.5	0.5-3.0	0.5-3.0	0.5-2.0	0.5-2.0	0.5-2.5	0.5-3.0	1.0-3.0
Stroke Per Minute		10–32	12–18	9–14	8–14	6–10	4–6	16–25	9–14	7–14	7–12	6–9	12–18	6–10	6–10	5–9	5–9
No. Of Hold Downs		16	15	15	15	16	15	21	21	21	21	21	30	30	30	30	30
Main Motor	kW	260	260	260	260	260	260	260	260	260	260	260	260	260	260	260	260
Backgauge Motor	kw	11	22	30	30	37	45	11	22	30	30	37	18.5	22	30	37	37
Backgauge Travel	mm	0.37	0.37	0.37	0.55	0.55	0.55	0.55	0.55	0.55	0.55	0.55	0.55	0.55	0.75	0.75	0.75
Oil Capacity	lt	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000
Table Length	mm	240	360	360	400	400	600	360	360	400	400	400	360	400	400	400	600
Table Height	mm	2	2	2	2	2	2	3	3	3	3	3	4	4	4	4	4
Transport Width	mm	3450	3480	3520	3540	3580	3560	4460	4500	4520	4540	4570	6460	6480	6520	6540	6560
Machine Width	mm	350	350	350	350	350	350	350	350	350	350	350	350	350	350	350	350
Length	mm	800	800	800	900	1000	1100	900	900	1000	1000	1100	1000	1000	1200	1200	1200
Width	mm	1650	1800	1920	1965	2350	2280	2000	1920	2280	2300	2350	2200	2200	2350	2500	2500
Height	mm	2700	2850	2970	3015	3400	3330	3050	2970	3330	3350	3400	3250	3250	3400	3550	3550
Weight	kg	3880	3910	3950	3970	4010	3990	4890	4930	4950	4970	5000	6890	6910	6950	6970	6990

Specifications	Unit	HSVS CNC 3100/6	HSVS CNC 3100/10	HSVS CNC 3100/13	HSVS CNC 3100/16	HSVS CNC 3100/20	HSVS CNC 3100/25	HSVS CNC 4100/6	HSVS CNC 4100/10	HSVS CNC 4100/13	HSVS CNC 4100/16	HSVS CNC 4100/20	HSVS CNC 6100/6	HSVS CNC 6100/10	HSVS CNC 6100/13	HSVS CNC 6100/16	HSVS CNC 6100/20
SKU		M1080	M1081	M1082	M1083	M1084	M1085	M1086	M1087	M1088	M1089	M1090	M1091	M1092	M1093	M1094	M1095
Cutting Length (mm)	mm	3070	3070	3070	3070	3070	3070	4070	4070	4070	4070	4070	6070	6070	6070	6070	6070
Cutting Capacity (45 kg/mm2)	mm	6	10	13	16	20	25	6	10	13	16	20	6	10	13	16	20
Cutting Capacity (70 kg/mm2)	mm	4	6	8	10	13	16	4	6	8	10	13	4	6	8	10	13
Cutting Angle (mm/sec)	mm/sec	0.5-1.5	0.5-2.0	0.5-2.5	0.5-3.0	0.5-3.0	0.5-3.5	0.5-1.5	0.5-2.0	0.5-2.5	0.5-3.0	0.5-3.0	0.5-2.0	0.5-2.0	0.5-2.5	0.5-3.0	1.0-3.0
Stroke Per Minute		10–32	12–18	9–14	8–14	6–10	4–6	16–25	9–14	7–14	7–12	6–9	12–18	6–10	6–10	5–9	5–9
No. Of Hold Downs		16	15	15	15	16	15	21	21	21	21	21	30	30	30	30	30
Main Motor (kW)	kW	260	260	260	260	260	260	260	260	260	260	260	260	260	260	260	260
Backgauge Motor (kW)	kw	11	22	30	30	37	45	11	22	30	30	37	18.5	22	30	37	37
Backgauge Travel (mm)	mm	0.37	0.37	0.37	0.55	0.55	0.55	0.55	0.55	0.55	0.55	0.55	0.55	0.55	0.75	0.75	0.75
Oil Capacity (lt)	lt	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000
Table Length (mm)	mm	240	360	360	400	400	600	360	360	400	400	400	360	400	400	400	600
Table Height (mm)	mm	2	2	2	2	2	2	3	3	3	3	3	4	4	4	4	4
Transport Width (mm)	mm	3450	3480	3520	3540	3580	3560	4460	4500	4520	4540	4570	6460	6480	6520	6540	6560
Machine Width (mm)	mm	350	350	350	350	350	350	350	350	350	350	350	350	350	350	350	350
Length (mm)	mm	800	800	800	900	1000	1100	900	900	1000	1000	1100	1000	1000	1200	1200	1200
Width (mm)	mm	1650	1800	1920	1965	2350	2280	2000	1920	2280	2300	2350	2200	2200	2350	2500	2500
Height (mm)	mm	2700	2850	2970	3015	3400	3330	3050	2970	3330	3350	3400	3250	3250	3400	3550	3550
Weight (kg)	mm	3880	3910	3950	3970	4010	3990	4890	4930	4950	4970	5000	6890	6910	6950	6970	6990
