Cost-effective deburring solution

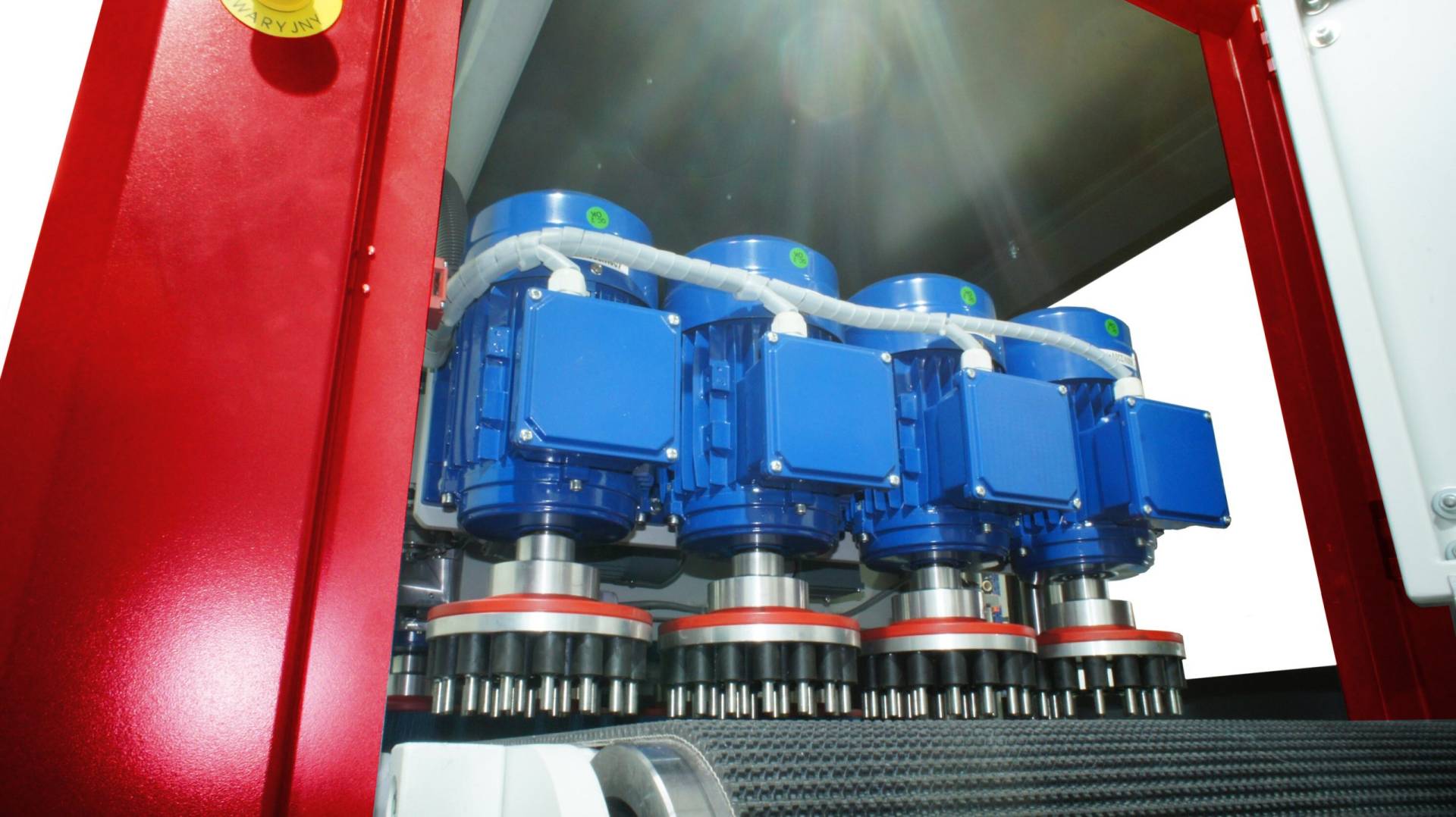

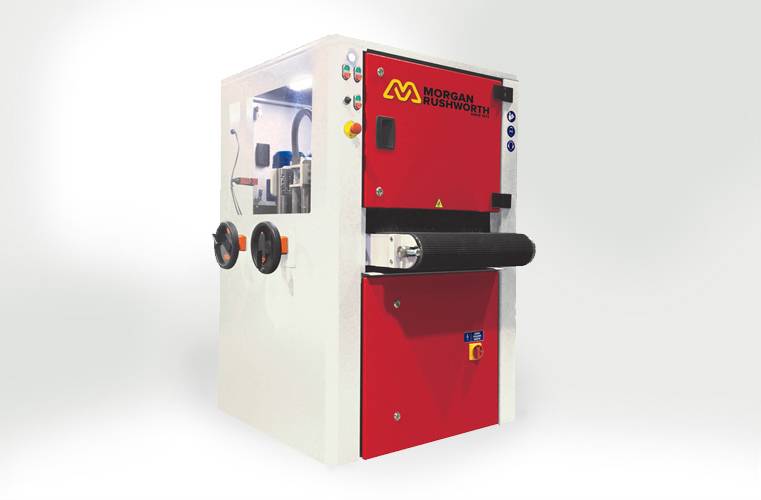

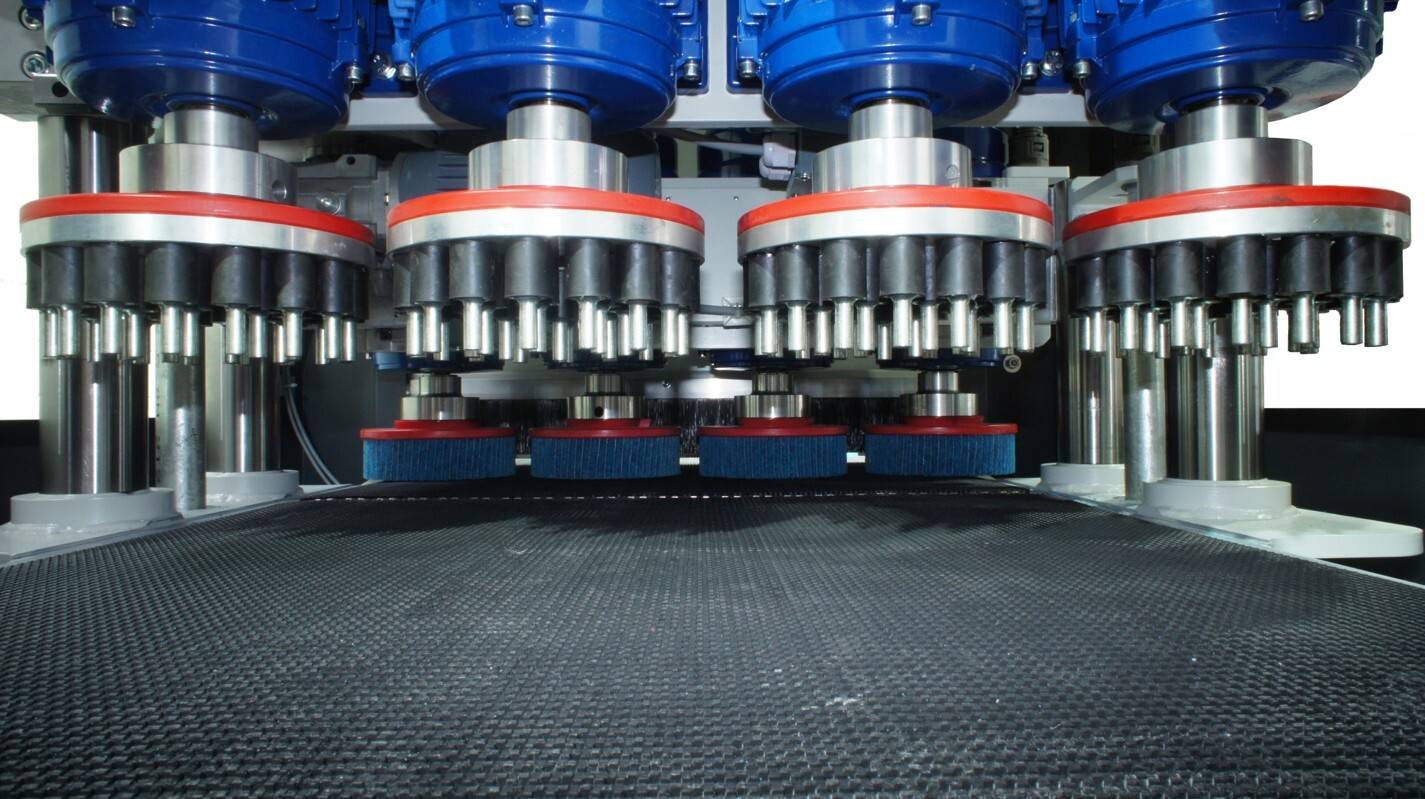

Morgan Rushworth DFR 1350 Flat Bed Deburring Machine is our newest addition in our de-burring and de-slagging range of products. The DFR 1350 is a robust and cost-effective solution that can process cut parts from 0 – 40mm in thickness and up to 1350mm in width. It also features a motorised thickness adjustment to move from a task to another in a flexible way. A variable speed conveyor moves the parts through the machine while two pairs of oscillating wheels perform the deburring. Different grit abrasives can be used in each set of wheels to achieve the desired finish.
Â
To remove heavy slag, heavy-duty deburring wheels are also available with the DFR 1350, as an optional asset.
Features
Technical Specs
Options
Downloads
Product Video
Knowledge Hub
Features
Features
Top Features- De-burring and de-slagging of profile cut plates
- Touch screen PLC control
- Motorised thickness adjustment
- Variable speed conveyor
Technical Specs
Technical Specifications
| Specifications | Unit | DFR 1350 |
|---|---|---|
| Maximum Processing Width | mm | 1350 |
| Thickness Range | mm | 0 – 40 |
| Wheel Diameter | mm | 300 |
| Deburring Wheel Motor | kW | 4 x 2.2 |
| Conveyor Motor | kW | 1.1 |
| Height Adjustment Motor | kW | 1.1 |
| Length | mm | 1770 |
| Width | mm | 1850 |
| Height | mm | 1780 |
| Weight | kg | 1700 |
| Specifications | Unit | DFR 1350 |
|---|---|---|
| Maximum Processing Width (mm) | mm | 1350 |
| Thickness Range (mm) | mm | 0 – 40 |
| Wheel Diameter mm | mm | 300 |
| Deburring Wheel Motor (kW) | kW | 4 x 2.2 |
| Conveyor Motor (kW) | kW | 1.1 |
| Height Adjustment Motor (kW) | kW | 1.1 |
| Length (mm) | mm | 1770 |
| Width (mm) | mm | 1850 |
| Height (mm) | mm | 1780 |
| Weight (kg) | kg | 1700 |
Options
Options
- Abrasive de-burring wheels
- Heavy duty de-slagging wheels
