A fully electric compact bending solution, promoting low energy usage

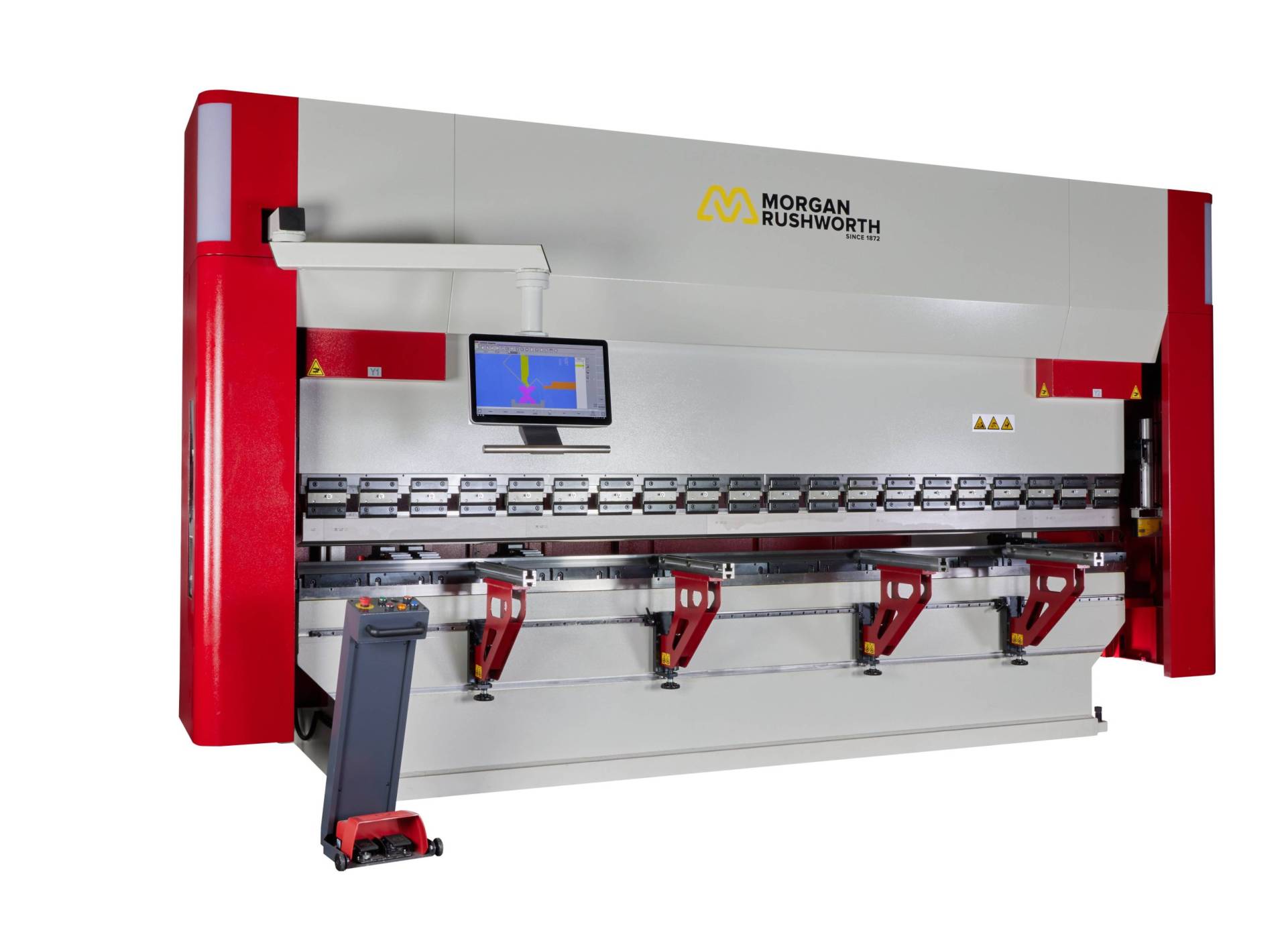

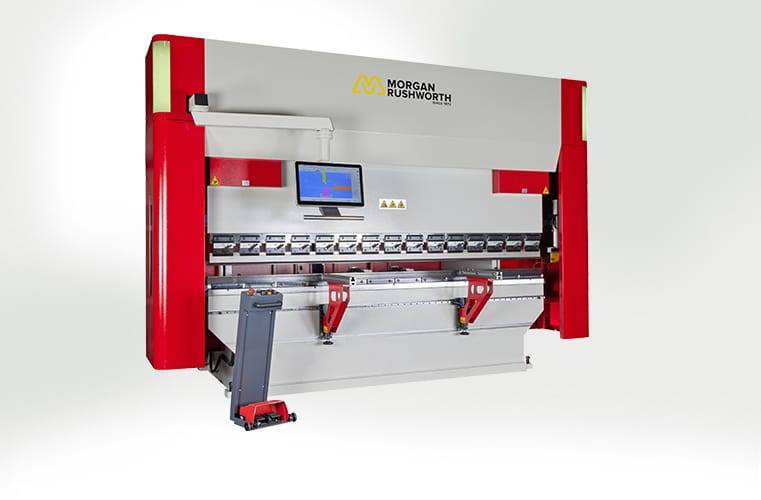

The Morgan Rushworth XPS range of servo-electric pressbrakes are designed with a ballscrew system providing low energy usage, high bending cycle times and high accuracy. This model is equipped with the ESA VIS-675 multi-axis CNC control with numerical and 2D graphical programming and 2D or 3D visualisation. The O frame design with virtually no flex results in a level of accuracy far higher than in conventional hydraulic machines. The side frames are fitted at each end of the machine meaning that the backgauge can be used for the full width of the machine to the maximum depth.
The XPE press brakes are more reliable than hydraulic machines with no rams, seals, pumps, pipes etc, resulting in less downtime.
ENQUIRE NOW
OR Call Us: 0800 980 7709
Features
Technical Specs
Options
Downloads
Product Video
Knowledge Hub
Features
Features
Top Features- Approximately 50% less energy use compared with hydraulic machines
- Approximately 30% faster cycle times
- Approximately 75% less servicing costs than hydraulic machines
- Green technology – no oil or hazardous waste affecting the environment
- Wila Hydraulic Top and Bottom Tool
- Clamping and Powerpack
- ESABEND 3D Control Software
Technical Specs
Technical Specs
| Specifications | Unit | XPS 1300.36 |
|---|---|---|
| Bending Power | Tonne | 36 |
| Bending Length | mm | 960 |
| DIST BETWEEN COLUMNS | mm | 1300 |
| Y APPROACH SPEED | mm/sec | 150 |
| Y WORKING SPEED | mm/sec | 10 |
| Y RETURN SPEED | mm/sec | 150 |
| TRAVEL IN X AXIS | mm/sec | 750 |
| TRAVEL IN R AXIS | mm/sec | 160 |
| NO OF BACK GAUGE FINGERS | 2 | |
| NO OF SHEET SUPPORT ARMS | mm | 2 |
| MOTOR POWER | kw | 10 |
| STROKE | mm | 150 |
| DAYLIGHT | mm | 430 |
| LENGTH | mm | 2050 |
| WIDTH | mm | 1700 |
| HEIGHT | mm | 2350 |
| WEIGHT | kg | 4350 |
| Specifications | Unit | XPS 1300.36 |
|---|---|---|
| Bending Power (mm) | Tonne | 36 |
| Bending Length (mm) | mm | 960 |
| DIST BETWEEN COLUMNS (mm) | mm | 1300 |
| Y APPROACH SPEED (mm/sec) | mm/sec | 150 |
| Y WORKING SPEED (mm/sec) | mm/sec | 10 |
| Y RETURN SPEED (mm/sec) | mm/sec | 150 |
| TRAVEL IN X AXIS (mm) | mm/sec | 750 |
| TRAVEL IN R AXIS (mm) | mm/sec | 160 |
| NO OF BACK GAUGE FINGERS | 2 | |
| NO OF SHEET SUPPORT ARMS (mm) | mm | 2 |
| MOTOR POWER (kW) | kw | 10 |
| STROKE (mm) | mm | 150 |
| DAYLIGHT (mm) | mm | 430 |
| LENGTH (mm) | mm | 2050 |
| WIDTH (mm) | mm | 1700 |
| HEIGHT (mm) | mm | 2350 |
| WEIGHT (kg) | kg | 4350 |
